Automobilista 2 telemetry
Automobilista 2
telemetry

Download from stores

download on steam download on the appstore download on the playstore

Quick instructions

To allow SRT to receive data from Automobilista 2:

  1. IMPORTANT SRT must be able to receive network packets from the game:
    • SRT Desktop: you can run SRT and the game on the same PC; otherwise, connect the PC running the game and the PC/mac running SRT to the same router AND use the same connection type (i.e. both connected wireless or both connected by cable).
    • SRT Mobile: connect the PC running the game to the same WiFi network of your mobile device (connect it wirelessly, not by cable);
  2. in Automobilista 2, open Options > System:
    1. set UDP Protocol Version to Project Cars 1;
    2. set UDP Frequency to 5;
  3. in SRT select Record new session > Start (effective telemetry recording will be confirmed by a coloured, animated flow of data - but see next point);
  4. the game will send useful telemetry data only while you are driving in a timed lap (no data are recorded during out-laps). SRT stores only complete timed laps (incomplete laps are discarded), so ensure to finish your timed laps.

See the Detailed Instructions section and the Troubleshooting section if you encounter problems.

Detailed instructions

Automobilista 2 can transmit telemetry data to remote devices. By default this option is disabled and must be manually enabled (also to run the game and SRT on the same machine).

IMPORTANT: the PC running Automobilista 2 must be able to communicate with the device running SRT. For this, you must:

See the Troubleshooting section for instructions on how to setup a network connection or if you have problems recording data.

In Automobilista 2, UDP telemetry output is controlled via the menus. To enable it, from the Main menu enter the Options menu and then System menu.

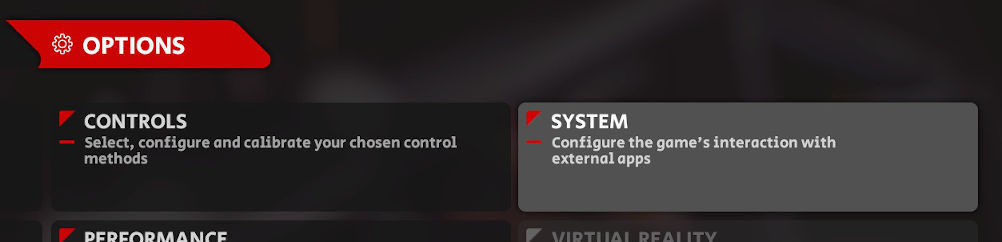

Options menu

In the System menu you must:

The game will start transmitting useful telemetry data only when you start driving a timed lap. SRT stores only complete timed laps (incomplete laps are discarded), so ensure to finish your timed laps. If SRT continues to show the message "Waiting for connection...", or if you encounter other issues, see the Troubleshooting section.

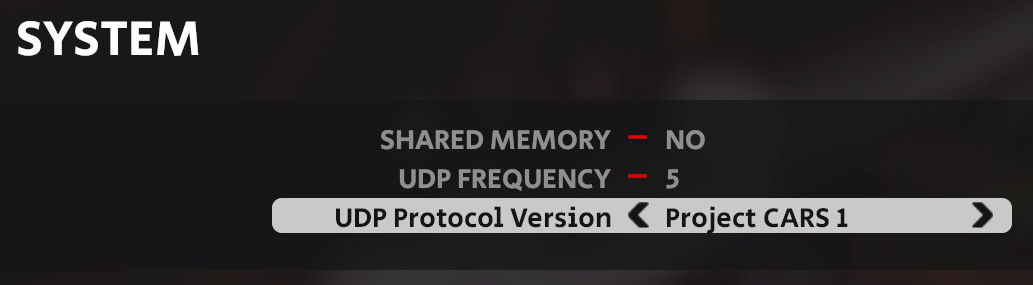

System menu

Here the supported values for the UDP Frequency option and the relative transmission rates:

UDP Frequency packets/sec interval
OFF 0/sec -
1 60/sec 16ms
2 50/sec 20ms
3 40/sec 25ms
4 30/sec 32ms
5 (suggested) 20/sec 50ms
6 15/sec 66ms
7 10/sec 100ms
8 5/sec 200ms
9 1/sec 1000ms

Troubleshooting

SRT continues to show the message "Waiting for connection..."

It means that no data are received from the game. It's likely a connection issue.

SRT Desktop - Verify that the console/PC running the game and the PC/mac running SRT are connected to the same router AND are using the same connection type (i.e. both connected wireless or both connected by cable). See links below to check or configure a network connection.

SRT Desktop - Temporarily disable your firewall to ensure it's not blocking network packets. Firewalls are active and could block packets also when the game and SRT are running on the same machine.

SRT Mobile - Verify that your PC/console is connected wirelessly (not by cable) to the same WiFi network of your mobile device. Here you can find instructions on how to setup a WiFi connection:

SRT Desktop SRT Mobile - Verify the IP address of the device running SRT and the IP address of the device running the game:

SRT continues to show the message "Waiting for data..."

It means that your game is not sending useful telemetry data to SRT.

The game sends useful telemetry data only while you are driving in a timed lap (i.e. a complete lap beginning and ending at the track finish line, where the resulting lap time is effective for the played session). Data for out-laps are discarded and are not recorded. So ensure to finish your out-lap and begin a timed lap.

After few seconds in a timed lap, you'll see a coloured flow of data animating on your screen. This confirms the recording of effective telemetry data.

Note that SRT stores only complete laps. Incomplete laps are discarded, so ensure to finish your timed laps.

"Fatal error" message during recording

This error is reported when SRT receives unknown data. This happens when some other software/device is sending data using the same communication port used by the game, interfering with the communication. Usually the solution is simple: change the UDP Port number used for the communication (both in the game settings and in SRT Recording settings).

For example this problem sometime happens with the F1 games. To change the used UDP Port number with the F1 games:

SRT receives data but the saved session is missing or empty

If SRT is recording data (you see the coloured flow of animated data on your screen) but when you press the "Stop" button you don't see the save file of your session (or it's empty), it means that the recorded data don't contain any complete timed lap telemetry.

SRT records data only for complete and timed laps. Incomplete laps (and out-laps) are discarded. If you don't complete a timed lap, it's considered an incomplete lap and it will be discarded. Be sure to record at least one complete timed lap to save a useful session file.

Contacts

In case you need further assistance, please contact the Sim Racing Telemetry support:
